Description
This enables efficient compaction of various soil types to achieve the required density levels. Additionally, plate compactors can be utilised for driving posts and piles, adding versatility to their applications.

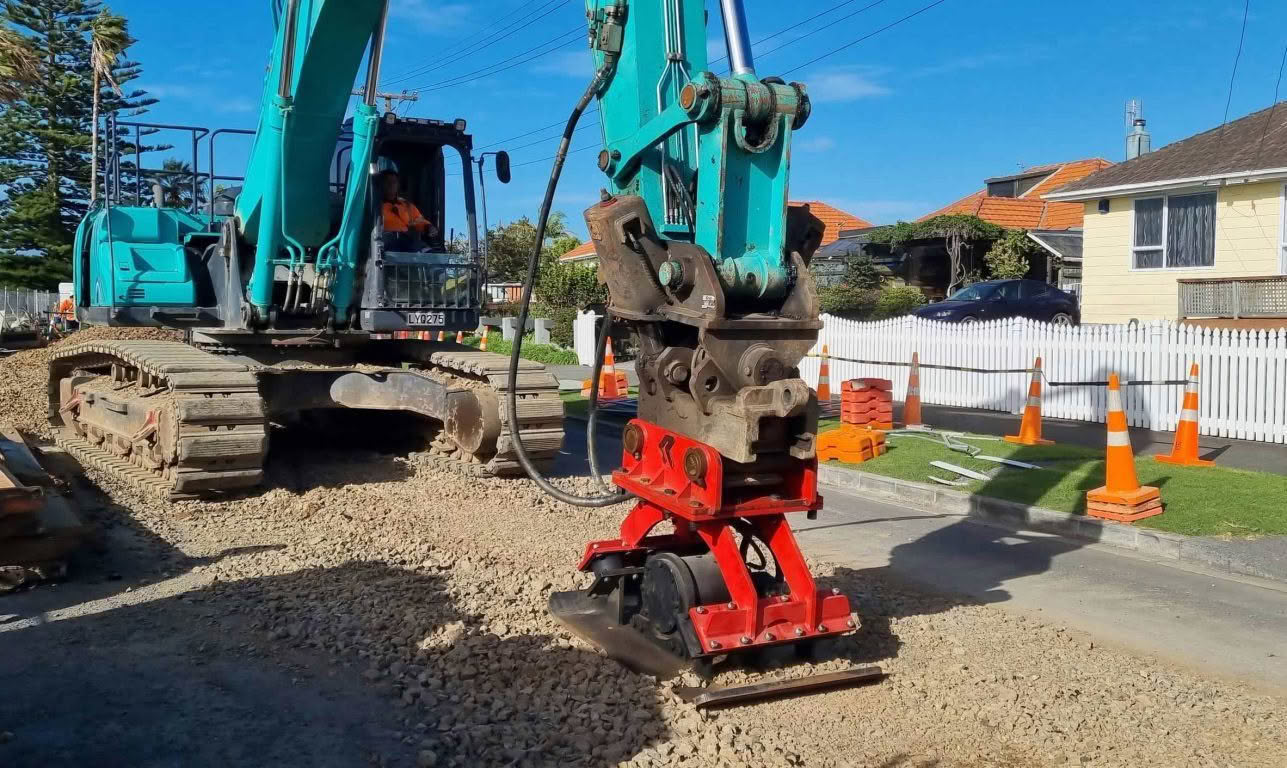

The rotation of the eccentric, coupled with the downward pressure of the carrier, generates powerful impulse force, allowing for compaction wherever your boom can reach.
This enables efficient compaction of various soil types to achieve the required density levels. Additionally, plate compactors can be utilised for driving posts and piles, adding versatility to their applications.
AVAILABLE SIZES: 5T to 30T
|
MODEL
|
Carrier Size
(TONNE ) |
Impulse Power
(TONNE ) |
Op. Oil Press
(BAR) |
Oil Flow
(L/MIN ) |
Weight
(KG) |
Dimensions
(H x L x W mm) |
|
|---|---|---|---|---|---|---|---|
| JCS04 | 4 – 9 | 5 | 100 – 130 | 45 – 75 | 300 | 760 x 900 x 550 | |
| JSC06 | 10 – 16 | 10 | 100 – 130 | 85 – 105 | 500 | 920 x 1160 x 700 | |
| JCS08 | 17 – 23 | 15 | 120 – 180 | 120 – 170 | 900 | 1060 x 1350 x 900 | |
| JCS10 | 24 – 30 | 15 | 120 – 180 | 120 – 170 | 950 | 1100 x 1500 x 1000 |
